What Is the Minimum Wall Thickness for 3D Printing?

by AustinChloe

Wall thickness in 3D printing directly affects whether your model will print successfully and hold up during use. Your design should have walls that are thick enough to be strong, but not so thick that they waste materials or take too long to print. Different 3D printing methods require different wall widths. FDM printers usually need walls that are at least 0.8mm thick, while resin printers can use walls as thin as 0.6mm. This guide explains important things to know about wall thickness for your 3D printing projects.

Key Factors That Affect 3D Printing Wall Thickness

The minimum wall thickness needed for successful 3D printing relies on multiple factors working together. The right thickness depends on your printer's skills, the material you're using, and how the part will be used.

3D Printing Technology

Different printing methods build layers differently, which affects how thin your walls can be.

1. FDM

FDM 3D printers have a fixed nozzle size and require multiple passes to build robust walls. The adhesion strength between layers is crucial when determining the minimum wall thickness.

A high-performance FDM 3D printer is printing a yellow boat model.

2. SLA

SLA (Stereolithography) printers use laser precision to make finer details than FDM. The liquid resin's qualities affect how thin the layers can be, which makes these printers great for creating small, detailed shapes.

3. SLS

SLS (Selective Laser Sintering) uses powdered materials, and the size of the particles affects how small the details can be. This method can handle complicated shapes, but removing extra powder limits how thin the walls can be.

4. MultiJet/PolyJet

MultiJet and PolyJet printers use accurate droplet printing, much like how inkjet printers work. They can work with different materials, but each material needs a specific width.

Material Properties

The type of 3D printing material you choose significantly impacts the minimum wall thickness. Brittle 3D printing materials require thicker walls to prevent cracking, whereas flexible materials need additional thickness to maintain their shape and avoid bending. Stronger materials can typically be used to create thinner walls without sacrificing strength.

Different materials can handle heat differently, which influences how they perform during printing and when in use. Some materials can bend or warp if printed too thin, so it's important to think about the minimum width needed.

End Use Requirements

Structural Considerations

The aim of your printed part decides how thick the walls need to be. The thickness of items depends on their purpose. Decorative items can be smaller, but parts that support weight need to be thicker for strength. Moving parts need certain spaces, and snap-fit pieces must be flexible enough to function correctly.

Environmental Factors

Environmental factors are also very important. Thin walls that get hot may become misshapen. Exposure to moisture can weaken some materials over time, so stronger walls are needed for strength. The need for UV light protection and resistance to contact also affects how thick materials must be for long-term stability.

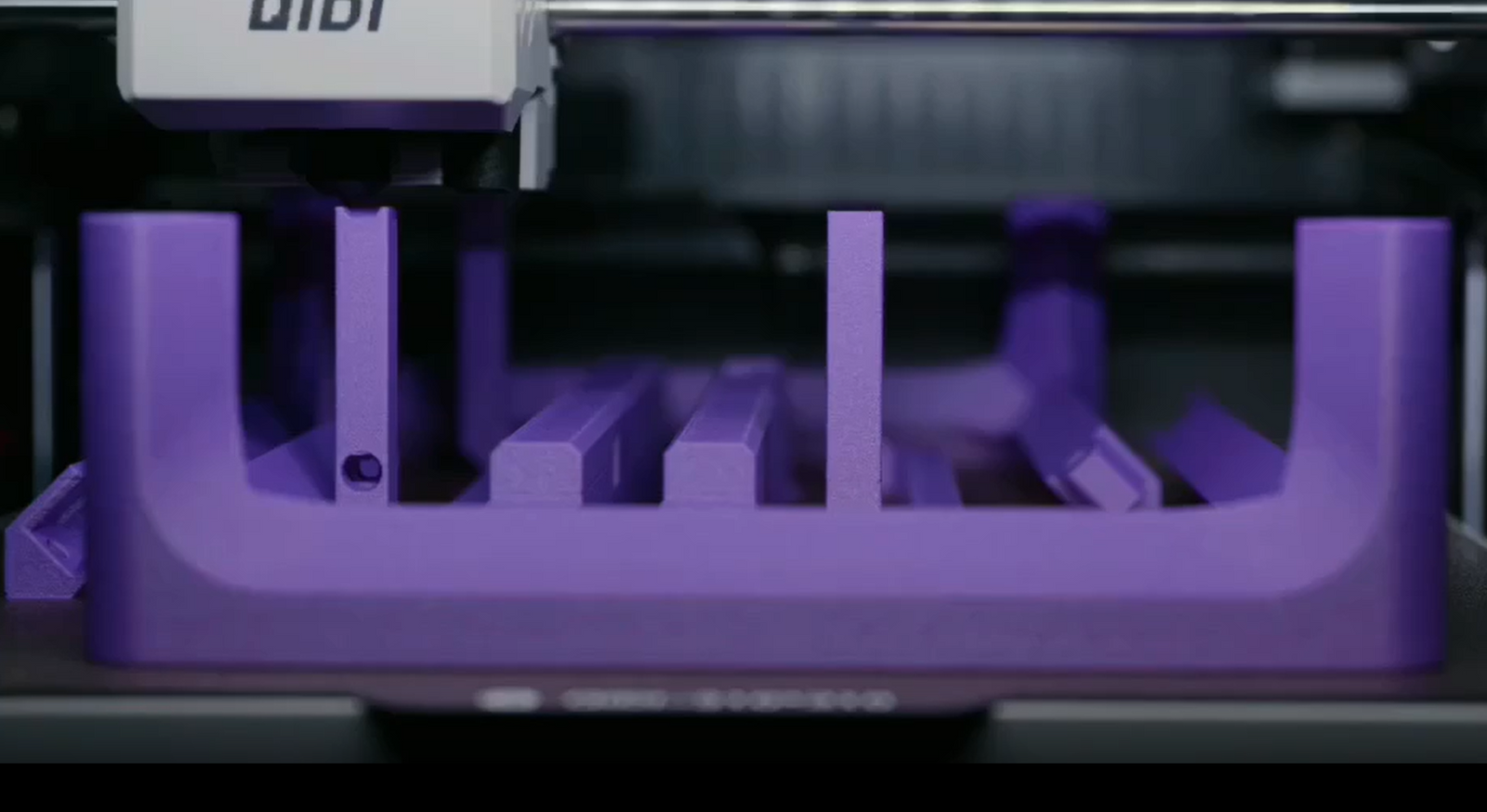

A high-performance 3D printer actually uses purple 3D printing consumables for printing work

Recommended Wall Thickness for Different 3D Printing Methods

The specific minimum wall thickness varies by printing method and material. Here are detailed recommendations for your 3D printing projects.

Minimum Wall Thickness by Technology

Print Type	Basic Parts	Standard Parts	Load-Bearing Parts	Detailed Features
FDM	0.8mm	1.2mm	2.0 - 2.4mm	1.0mm
SLA	0.6mm	0.8mm	1.2 - 1.5mm	0.6mm
SLS	0.7mm	1.0mm	1.5 - 2.0mm	0.8mm
MultiJet	0.6mm	0.8mm	1.2 - 1.5mm	0.6mm

Material-Based Thickness Adjustments

Material Type	Additional Thickness Needed
Standard PLA	No adjustment needed
ABS/ASA	+0.2mm
Carbon Fiber	+0.1mm
Soft TPU	+0.4mm
Very Soft TPU	+0.6mm
Elastic Resin	+0.3mm

Special Applications

Application	Recommended Thickness
Support Structures	1.0 - 1.6mm
Moving Parts	1.2 - 1.5mm
Snap Fits	1.2 - 2.0mm
Clear Parts	0.8 - 1.0mm
Molds	1.2 - 2.0mm

These measurements provide starting points for common applications. The final wall thickness should account for your specific printer's capabilities and the part's intended use.

Design Considerations for 3D Printing Wall Thickness

Strategic Wall Thickness Design

After choosing the basic wall thickness for your printing method and material, certain areas of your model need special attention:

High-Stress Areas

Mount points: Add 50% more thickness than your base walls
Screw holes: Surrounding area should be 2-3 times the base thickness
Snap fits: Double the wall thickness around clip mechanisms
Living hinges: Reduce to 75% of base thickness for flexibility
Support ribs: Use 80% of main wall thickness for efficient reinforcement

Corner and Transition Design

Add 1-2mm fillets to sharp internal corners
Use gradual thickness transitions (max 45° angle)
Maintain minimum 2:1 ratio between connected thick and thin sections
Avoid sudden thickness changes that could create weak points

Print Time and Material Efficiency

Wall thickness directly impacts resource use. Here's how different wall designs affect a typical 100mm × 100mm × 100mm part:

Design Approach	Material Use	Print Time	Relative Cost
Uniform Thick Walls (2mm)	200g	5 hrs	100%
Optimized Variable Walls (1.2-2mm)	140g	3.5 hrs	70%
Reinforced Thin Walls (1.2mm + ribs)	120g	3 hrs	60%

Several design approaches can reduce material use and print time:

Replace thick walls with thin walls plus support ribs
Use honeycomb or triangular infill in wide flat areas
Add thickness only to load-bearing sections
Design self-supporting angles (>45°) to reduce support material

Smart wall thickness choices lead to significant savings in both time and material while maintaining part strength. The right balance of thickness in different areas creates efficient, durable prints at lower costs.

Wall thickness in 3D printing directly affects whether your model will print successfully and hold up during use. Your design should have walls that are thick enough to be strong, but not so thick that they waste materials or take too long to print. Different 3D printing methods require different wall widths. FDM printers usually need walls that are at least 0.8mm thick, while resin printers can use walls as thin as 0.6mm. This guide explains important things to know about wall thickness for your 3D printing projects. Key Factors That Affect 3D Printing Wall Thickness The minimum wall thickness needed for successful 3D printing relies on multiple factors working together. The right thickness depends on your printer's skills, the material you're using, and how the part will be used. 3D Printing Technology Different printing methods build layers differently, which affects how thin your walls can be. 1. FDM FDM 3D printers have a fixed nozzle size and require multiple passes to build robust walls. The adhesion strength between layers is crucial when determining the minimum wall thickness. 2. SLA SLA (Stereolithography) printers use laser precision to make finer details than FDM. The liquid resin's qualities affect how thin the layers can be, which makes these printers great for creating small, detailed shapes. 3. SLS SLS (Selective Laser Sintering) uses powdered materials, and the size of the particles affects how small the details can be. This method can handle complicated shapes, but removing extra powder limits how thin the walls can be. 4. MultiJet/PolyJet MultiJet and PolyJet printers use accurate droplet printing, much like how inkjet printers work. They can work with different materials, but each material needs a specific width. Material Properties The type of 3D printing material you choose significantly impacts the minimum wall thickness. Brittle 3D printing materials require thicker walls to prevent cracking, whereas flexible materials need additional thickness to maintain their shape and avoid bending. Stronger materials can typically be used to create thinner walls without sacrificing strength. Different materials can handle heat differently, which influences how they perform during printing and when in use. Some materials can bend or warp if printed too thin, so it's important to think about the minimum width needed. End Use Requirements Structural Considerations The aim of your printed part decides how thick the walls need to be. The thickness of items depends on their purpose. Decorative items can be smaller, but parts that support weight need to be thicker for strength. Moving parts need certain spaces, and snap-fit pieces must be flexible enough to function correctly. Environmental Factors Environmental factors are also very important. Thin walls that get hot may become misshapen. Exposure to moisture can weaken some materials over time, so stronger walls are needed for strength. The need for UV light protection and resistance to contact also affects how thick materials must be for long-term stability. Recommended Wall Thickness for Different 3D Printing Methods The specific minimum wall thickness varies by printing method and material. Here are detailed recommendations for your 3D printing projects. Minimum Wall Thickness by Technology Print Type Basic Parts Standard Parts Load-Bearing Parts Detailed Features FDM 0.8mm 1.2mm 2.0 - 2.4mm 1.0mm SLA 0.6mm 0.8mm 1.2 - 1.5mm 0.6mm SLS 0.7mm 1.0mm 1.5 - 2.0mm 0.8mm MultiJet 0.6mm 0.8mm 1.2 - 1.5mm 0.6mm Material-Based Thickness Adjustments Material Type Additional Thickness Needed Standard PLA No adjustment needed ABS/ASA +0.2mm Carbon Fiber +0.1mm Soft TPU +0.4mm Very Soft TPU +0.6mm Elastic Resin +0.3mm Special Applications Application Recommended Thickness Support Structures 1.0 - 1.6mm Moving Parts 1.2 - 1.5mm Snap Fits 1.2 - 2.0mm Clear Parts 0.8 - 1.0mm Molds 1.2 - 2.0mm These measurements provide starting points for common applications. The final wall thickness should account for your specific printer's capabilities and the part's intended use. Design Considerations for 3D Printing Wall Thickness Strategic Wall Thickness Design After choosing the basic wall thickness for your printing method and material, certain areas of your model need special attention: High-Stress Areas Mount points: Add 50% more thickness than your base walls Screw holes: Surrounding area should be 2-3 times the base thickness Snap fits: Double the wall thickness around clip mechanisms Living hinges: Reduce to 75% of base thickness for flexibility Support ribs: Use 80% of main wall thickness for efficient reinforcement Corner and Transition Design Add 1-2mm fillets to sharp internal corners Use gradual thickness transitions (max 45° angle) Maintain minimum 2:1 ratio between connected thick and thin sections Avoid sudden thickness changes that could create weak points Print Time and Material Efficiency Wall thickness directly impacts resource use. Here's how different wall designs affect a typical 100mm × 100mm × 100mm part: Design Approach Material Use Print Time Relative Cost Uniform Thick Walls (2mm) 200g 5 hrs 100% Optimized Variable Walls (1.2-2mm) 140g 3.5 hrs 70% Reinforced Thin Walls (1.2mm + ribs) 120g 3 hrs 60% Several design approaches can reduce material use and print time: Replace thick walls with thin walls plus support ribs Use honeycomb or triangular infill in wide flat areas Add thickness only to load-bearing sections Design self-supporting angles (>45°) to reduce support material Smart wall thickness choices lead to significant savings in both time and material while maintaining part strength. The right balance of thickness in different areas creates efficient, durable prints at lower costs. Testing Methods to Verify 3D Printing Wall Thickness Before making the end product, testing ensures that the wall thicknesses you selected are effective. Both digital and real tests are important for improving your design. Digital Testing with CAD Software CAD thickness analysis shows parts of your design that could be too thin or too thick. This early check helps stop printing problems and weak structures. The program looks at your whole model and points out parts that need changes. Draft angle analysis looks for steep slopes and overhangs that might create issues with printing. These areas often need extra support or changes in design to be printed properly. Advanced modeling tools help you understand how your part will perform in real situations. These tests show where stress happens, where things might change shape, and how heat affects them. This information helps make important choices about wall thickness for functional parts. Physical Test Prints A small test piece at 25% scale provides practical insights about your design. This scaled-down version should include key features like joints, clips, or mounting points. The smaller size saves time and material while still validating your wall thickness choices. Test prints help verify several aspects: Actual printed thickness matches design specifications Layer adhesion quality in thin sections Performance of functional features Strength of thickness transitions Each test reveals opportunities for improvement. Thin areas might need reinforcement, while thick sections could potentially be reduced. This practical feedback helps refine your design efficiently. Common Mistakes in Wall Thickness Design Poor wall thickness decisions can lead to print failures or part performance issues. Here are the most common mistakes and their solutions. Inconsistent Wall Thickness Sudden thickness changes in a model are a frequent error. For example, shifting from 2mm to 0.8mm causes: Poor layer bonding during printing Stress concentration leading to cracks Extrusion issues and print defects Solution: Design gradual transitions with thickness changes no steeper than 45 degrees. Limit changes to 0.2mm per 1mm of distance. Excessive Wall Thickness Walls that are too thick create several problems: Wasted material and longer print times Warping from uneven cooling between inner and outer layers Unnecessary part weight Solution: Add thickness only in load-bearing areas. Keep other regions at recommended base thickness. Use support ribs to increase strength instead of simply making walls thicker. Insufficient Wall Thickness Walls that are too thin often result from prioritizing detail or trying to save material: Unable to handle normal use stresses Prone to breakage or deformation during printing Poor surface quality Solution: Follow minimum wall thickness requirements for your printing technology. For decorative features, strengthen the supporting structure rather than compromising on minimum thickness. Design Your 3D Printing Wall Thickness Right! The right wall thickness is important for efficient 3D printing. Use the suggested minimum width for your printing method and material, and then change it if necessary for your specific part. Use online tests and small printed samples to check your design. By designing wall thickness carefully to avoid rapid changes and address stress points, you can make strong, efficient parts while saving time and materials.

Testing Methods to Verify 3D Printing Wall Thickness

Before making the end product, testing ensures that the wall thicknesses you selected are effective. Both digital and real tests are important for improving your design.

Digital Testing with CAD Software

CAD thickness analysis shows parts of your design that could be too thin or too thick. This early check helps stop printing problems and weak structures. The program looks at your whole model and points out parts that need changes.

Draft angle analysis looks for steep slopes and overhangs that might create issues with printing. These areas often need extra support or changes in design to be printed properly.

Advanced modeling tools help you understand how your part will perform in real situations. These tests show where stress happens, where things might change shape, and how heat affects them. This information helps make important choices about wall thickness for functional parts.

Physical Test Prints

A small test piece at 25% scale provides practical insights about your design. This scaled-down version should include key features like joints, clips, or mounting points. The smaller size saves time and material while still validating your wall thickness choices.

Test prints help verify several aspects:

Actual printed thickness matches design specifications
Layer adhesion quality in thin sections
Performance of functional features
Strength of thickness transitions

Each test reveals opportunities for improvement. Thin areas might need reinforcement, while thick sections could potentially be reduced. This practical feedback helps refine your design efficiently.

Common Mistakes in Wall Thickness Design

Poor wall thickness decisions can lead to print failures or part performance issues. Here are the most common mistakes and their solutions.

Inconsistent Wall Thickness

Sudden thickness changes in a model are a frequent error. For example, shifting from 2mm to 0.8mm causes:

Poor layer bonding during printing
Stress concentration leading to cracks
Extrusion issues and print defects

Solution: Design gradual transitions with thickness changes no steeper than 45 degrees. Limit changes to 0.2mm per 1mm of distance.

Excessive Wall Thickness

Walls that are too thick create several problems:

Wasted material and longer print times
Warping from uneven cooling between inner and outer layers
Unnecessary part weight

Solution: Add thickness only in load-bearing areas. Keep other regions at recommended base thickness. Use support ribs to increase strength instead of simply making walls thicker.

Insufficient Wall Thickness

Walls that are too thin often result from prioritizing detail or trying to save material:

Unable to handle normal use stresses
Prone to breakage or deformation during printing
Poor surface quality

Solution: Follow minimum wall thickness requirements for your printing technology. For decorative features, strengthen the supporting structure rather than compromising on minimum thickness.

Design Your 3D Printing Wall Thickness Right!

The right wall thickness is important for efficient 3D printing. Use the suggested minimum width for your printing method and material, and then change it if necessary for your specific part. Use online tests and small printed samples to check your design. By designing wall thickness carefully to avoid rapid changes and address stress points, you can make strong, efficient parts while saving time and materials.
