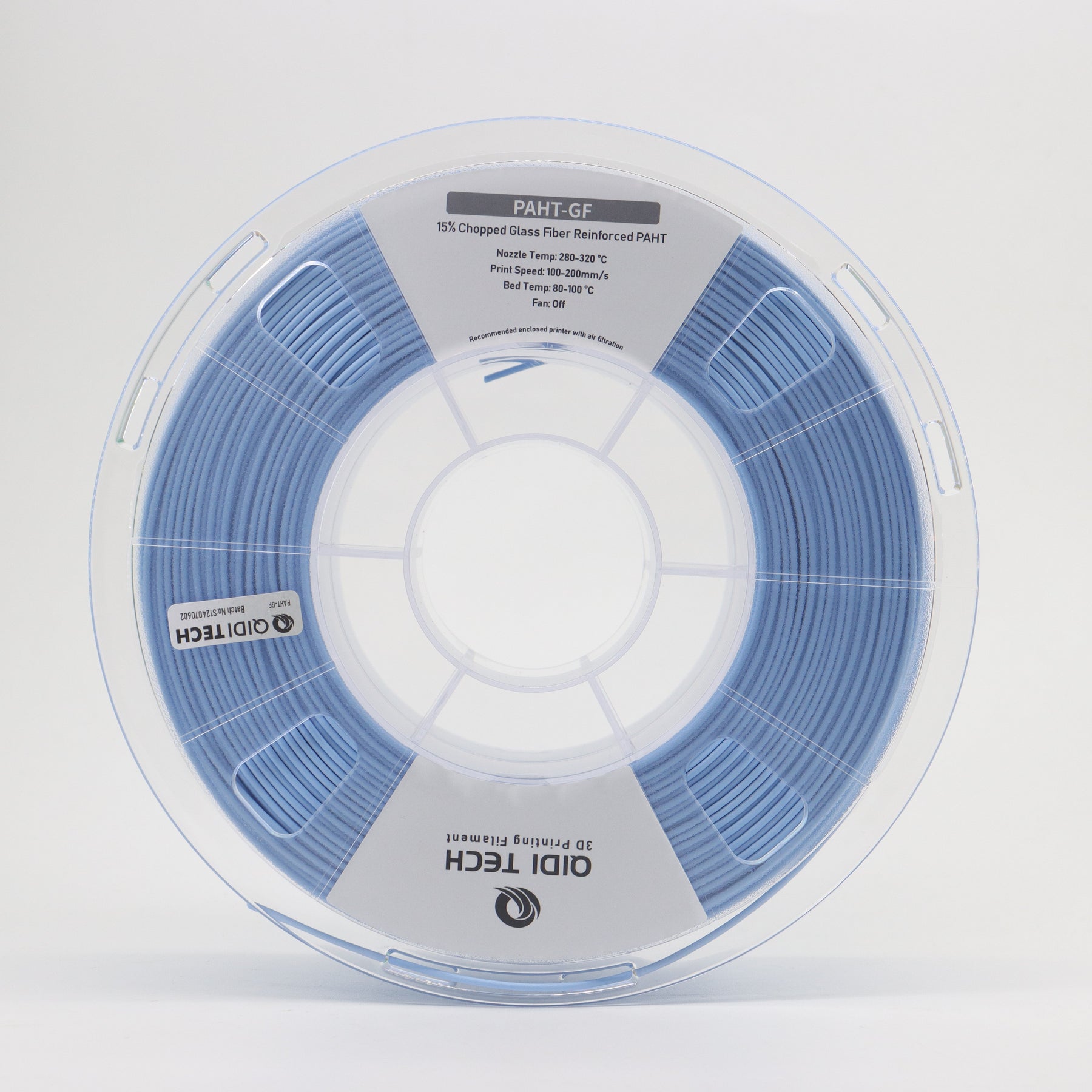

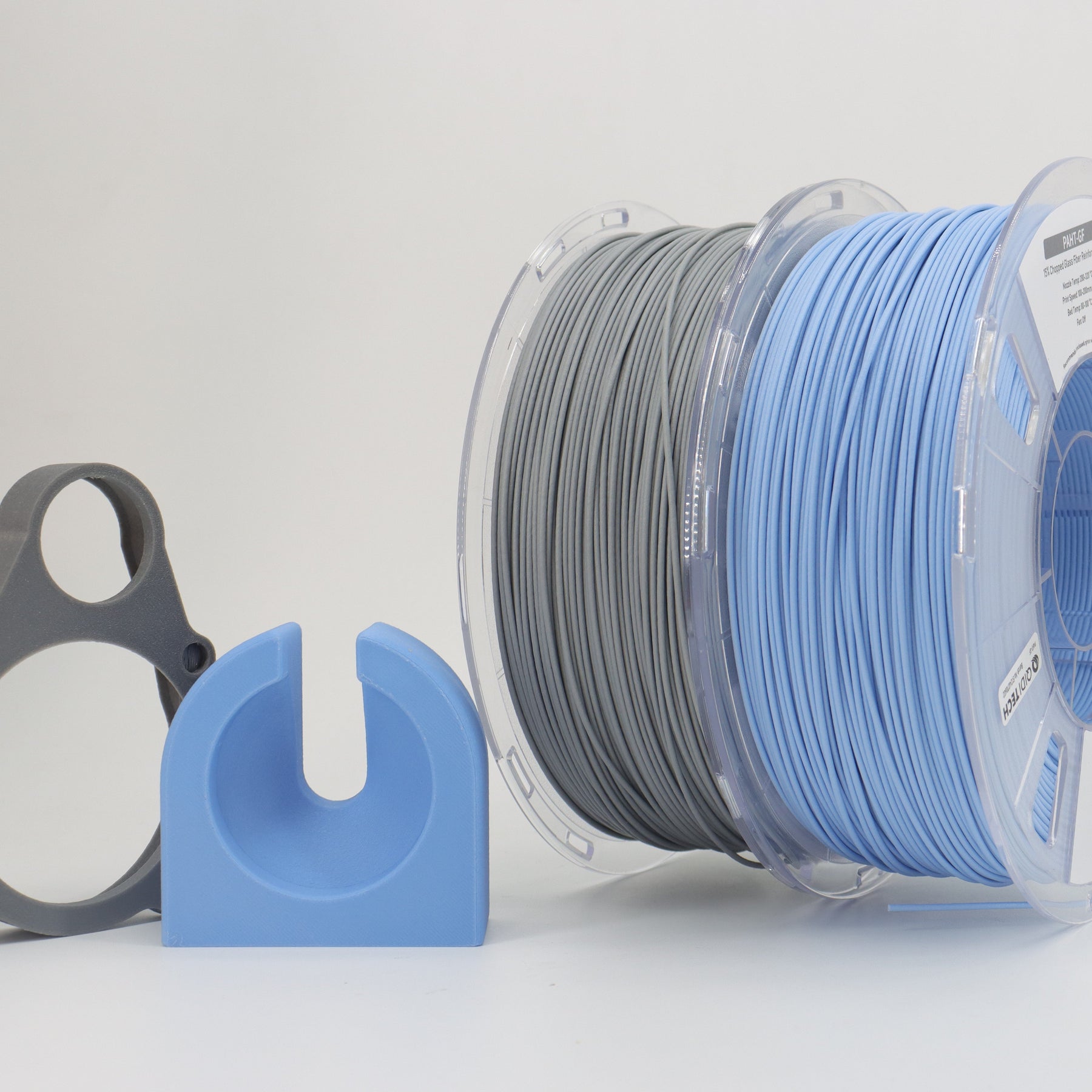

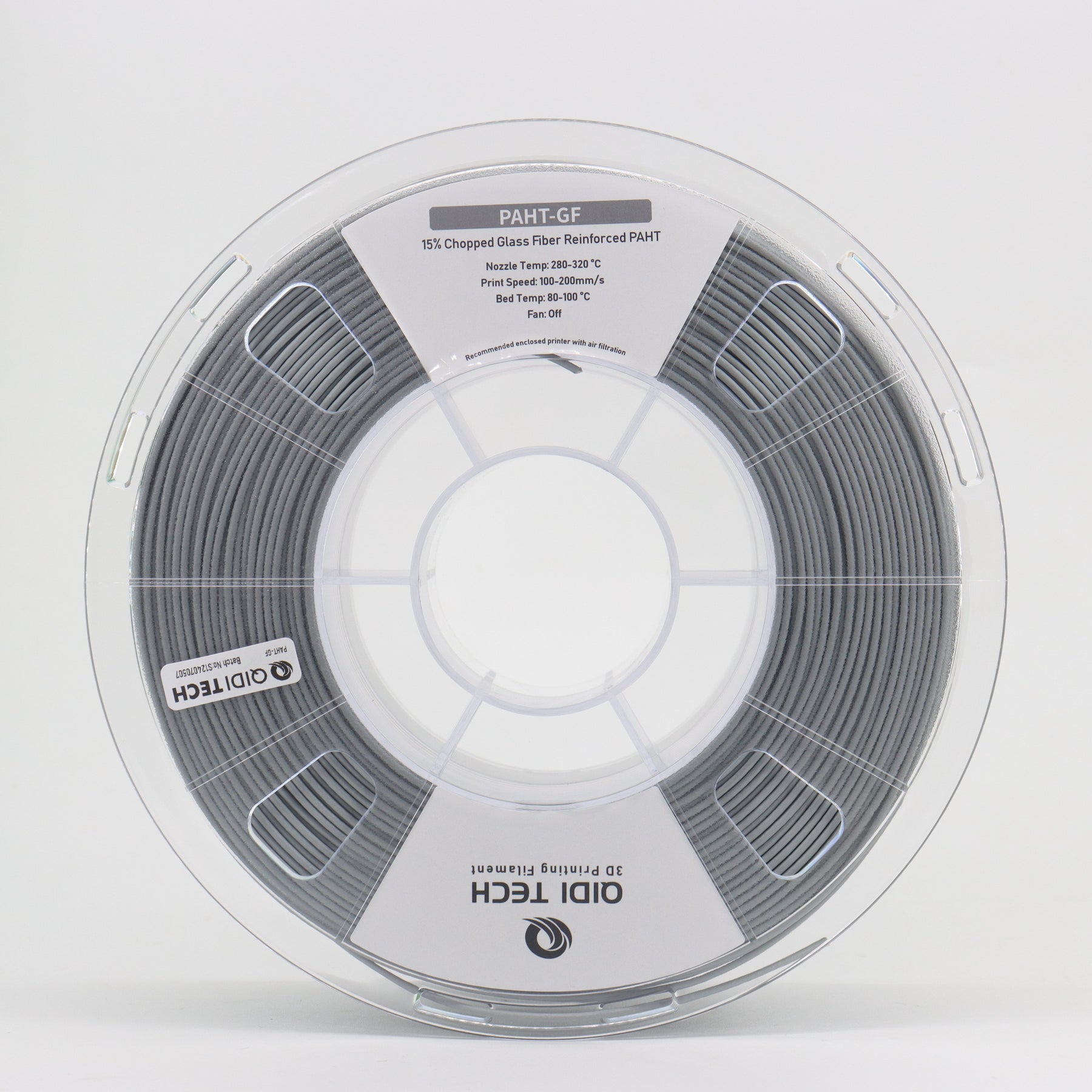

QIDI PAHT-GF (PPA-GF) Filament
QIDI PAHT-GF is specially developed for FDM 3D printing process. The base material is high-temperature nylon, compounded with 15% glass fiber, and a mesh skeleton structure is formed inside. It has the characteristics of low moisture absorption, high strength, high wear resistance, excellent chemical resistance and high heat resistance. It has good dimensional stability during printing, no warping and shrinkage, exquisite matte surface, and more diverse colors.
Stable mechanical properties
The addition of glass fiber significantly improves the mechanical strength of the material and solves the problem of warping and shrinkage in PPA printing. It also provides more color options and is suitable for manufacturing high-load materials with color requirements.
| Filament | PA12-CF | PAHT-CF | UltraPA-CF25 | PAHT-GF |
| Bending strength (X-Y，Annealed) | 124 MPa | 157 MPa | 168 MPa | 137 MPa |
| Bending modulus (X-Y，Annealed) | 4305 MPa | 6983 MPa | 7466 MPa | 4135 MPa |
High Heat Resistance
Smart Fiber Reinforced Technology greatly improves the heat resistance of the material, allowing your work to maintain stable performance in high temperature environments, suitable for application scenarios that require heat resistance.
| Filament | PA12-CF | PAHT-CF | UltraPA-CF25 | PAHT-GF |
| Heat Deflection Temperature(0.45MPa) | 138.2°C | 190.7°C | 196.9°C | 180.0°C |
Low Mositure Sensitivity
QIDI PAHT-GF based on modified high temperature nylon, whose saturated moistureabsorption rate is only one tenth of ordinary PA6, completely solving the defects ofthe mechanicalproperties and dimensional stability of nylon materials that change greatly after absorbed moisture.
| Filament | PA12-CF | PAHT-CF | UltraPA-CF25 | PAHT-GF |
| Water absorption | 2.46% | 1.37% | 1.09% | 1.75% |
Super Abrasive Resistance
QIDI PAHT-GF has a low coefficient offriction, self-lubricating properties and excellent wearresistance, which can easily meet all kinds of high-strength gears or industrial applications withhigh wear requirements.
Accessory Compatibility
| Recommended | Not Recommended | |
| Build Plate | QIDI PEI Plate, HF Plate and Smooth Plate | PC Plate |
| Hotend |
Hardened Steel Nozzle ( 0.4 / 0.6 / 0.8 mm) Bimetal Nozzle ( 0.4 / 0.6 / 0.8 mm) Tungsten Carbide Nozzles( 0.4 / 0.6 / 0.8 mm) |
Brass/Copper plated Nozzle (0.2/0.4/0.6/0.8 mm) |
| Glue | Glue Stick/ 3D LAC adhesive spray | / |
| Recommended Printing Settings | |
| Drying Settings (Blast Drying Oven) | 80-100 °C，4-8 h |
| Printing and Keeping Container's Humidity | < 15% RH (Sealed, with Desiccant) |
| Nozzle Temperature | 300 - 320 °C |
| Bed Temperature (with Glue) | 70-90 °C |
| Printing Speed | 30-160 mm/s |
| Physical Properties | |
| Density | 1.27 g/cm³ |
| Water absorption | 1.75% |
| Heat Deflection Temperature | 80 °C |
| Melting Temperature | 237°C |
| Melt index | 7.6 g/10 min |
| Mechanical Properties | |
| Tensile strength(X-Y) | 86.49±1.03 MPa/90.50±2.57 MPa |
| Elongation at break (X-Y) | 1.78±0.07 %/td> |
| Bending Modulus | 4135.14±64.91 MPa/4897.64±136.40 MPa |
| Bending Strength | 137.78±2.35 MPa/140.77±5.28 MPa |
| Impact Strength | 7.29 ± 0.76 KJ/㎡ |
Printing Tips
1.Nylon material is very easy to absorb moisture within the
environment, and printing after absorbing
moisture will result ozzing, extruding with bubbles and rough surface appearance, thus reducing
print
quality. It is recommended that put the filament into a dry box (humidity below 15%) immediately
after
opening the QIDI PAHT-GF vacuum foil bag for printing. Please put the unused filament back into
the original aluminum foil bag for sealed storage.
2. After the material is damp, there will be more printing ozzing, bubbles extruded and rough
printing
surface. Please dry the filament in an oven at 80-100℃ for 4-6h to restore the printing quality of
QIDI PAHT-GF.
3. It is recommended to use hardened steel and above grade nozzles, which can effectively
improve the print quality. Besides, it is recommended that the thickness of the heating block is
longer
12mm.
4. After the printing is completed, the QIDI PAHT-GF printed part can be annealed to further improve
the strength of print part. Annealing conditions: leave printing part in an oven at 80-100℃ for 4 to
8 hours
and cool to room temperature naturally.
5.The filament has a high content of short-cut glass fiber and has been factory-dried, which makes
it more brittle and prone to breaking. This is a normal phenomenon.
For more details please refer
to: Filament Guide on WIKI.

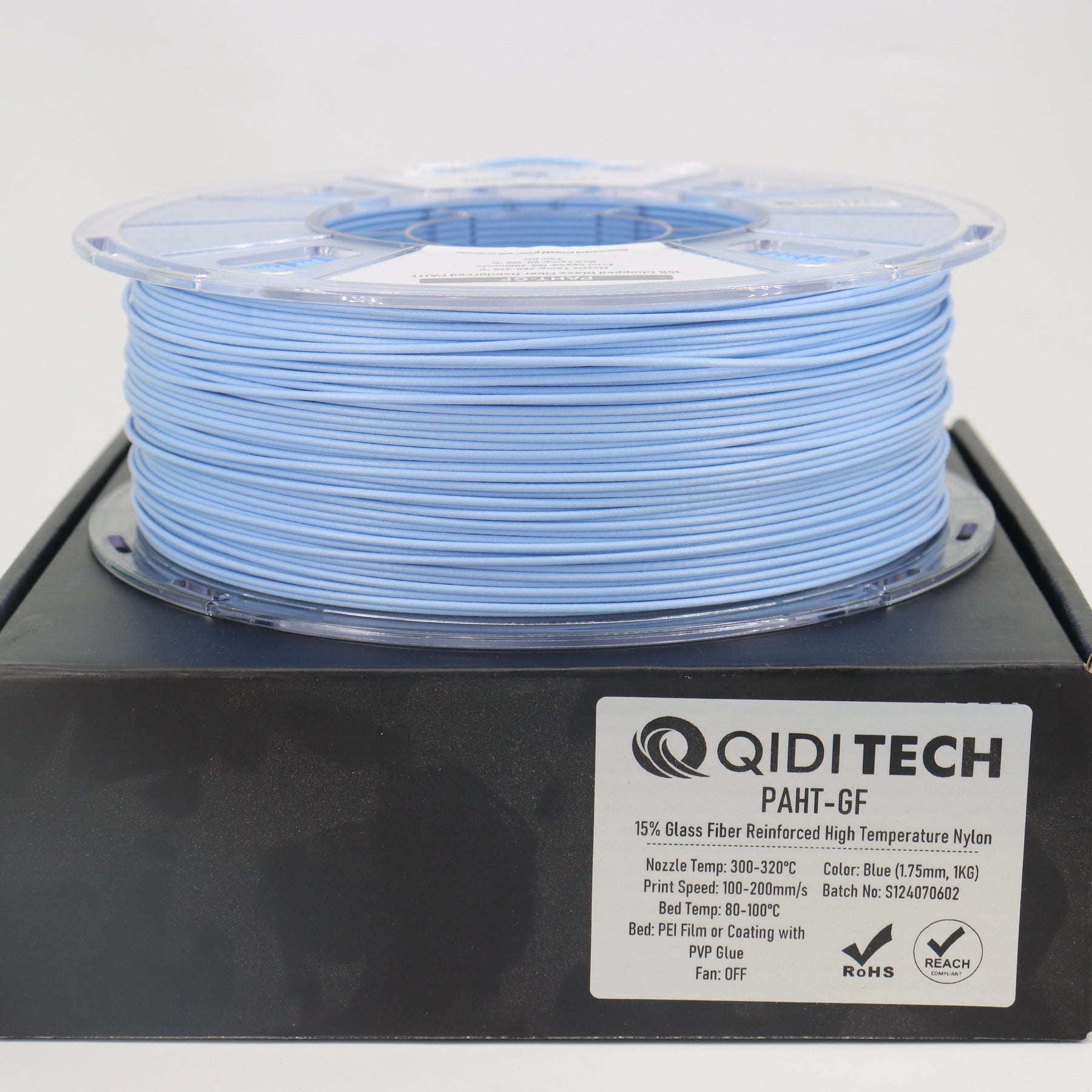

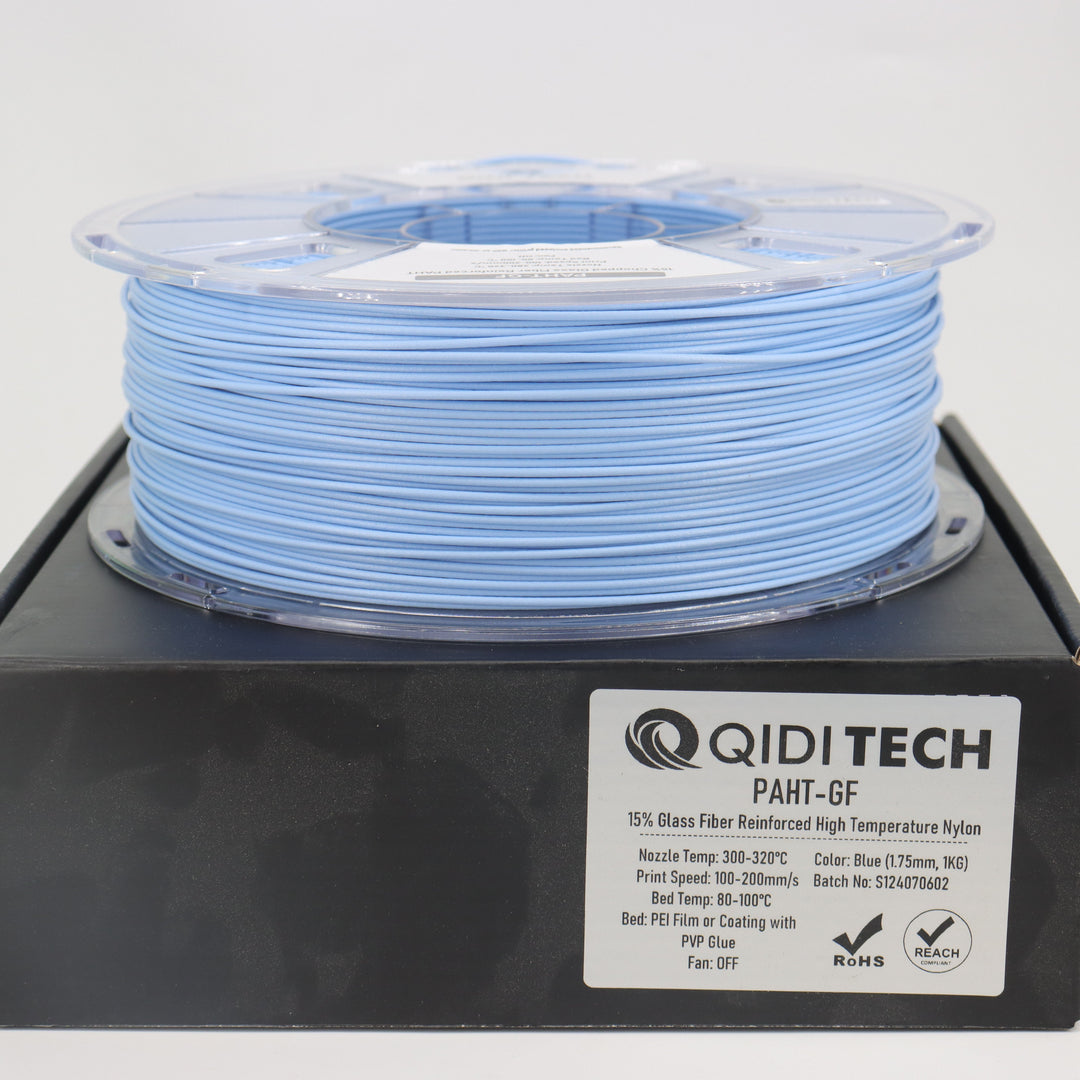

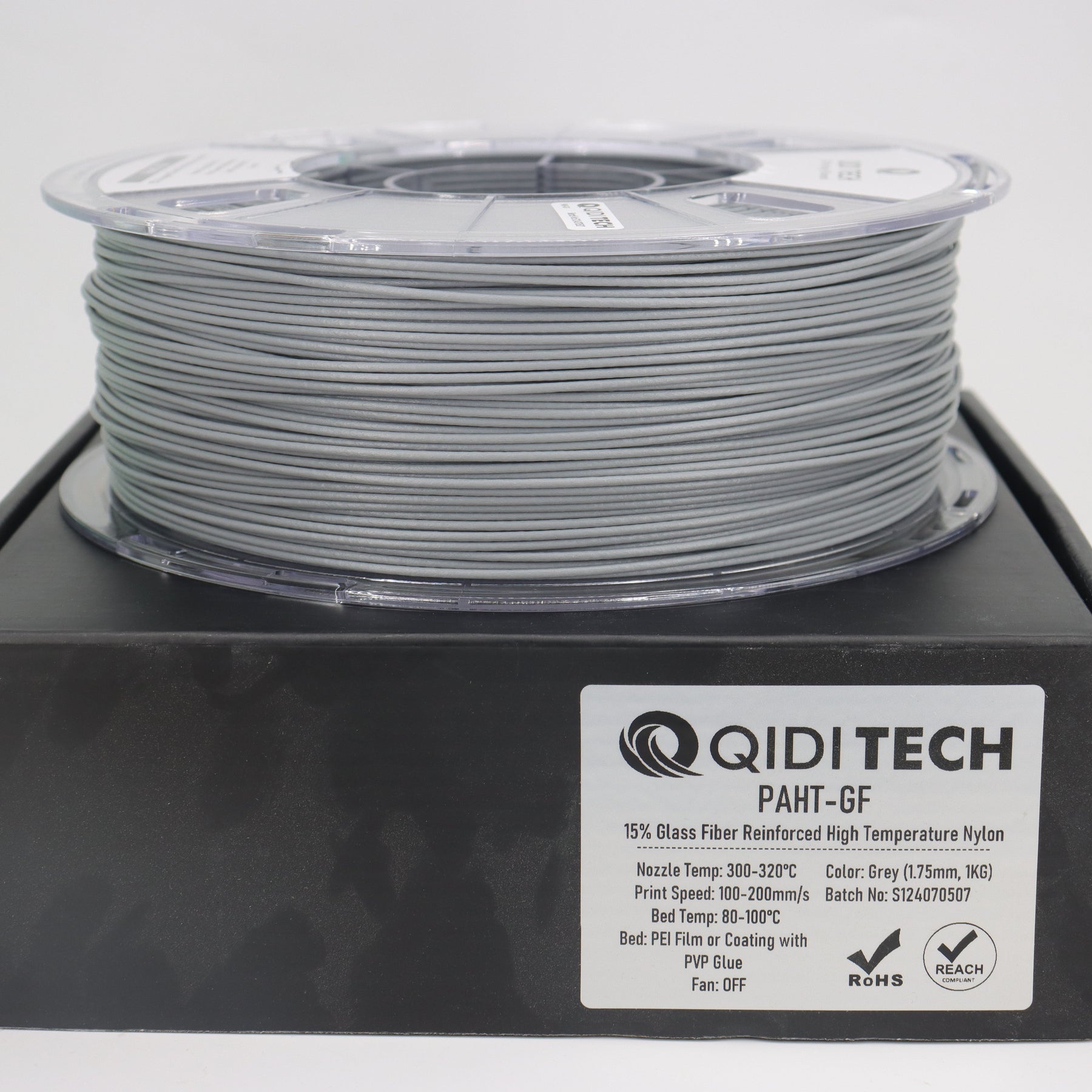

Vacuum Aluminum Foil Packaging
According to the test, the water vapor transmission rate of ordinary sealed packaging is 4.76%, while the water vapor transmission rate of vacuum aluminum foil packaging we use is only 0.014%. It can be seen that vacuum aluminum foil packaging is more water-resistant.
Product Size
QIDI TECH PAHT-GF filament 1.75mmWorks perfectly with most FDM 3Dprinters on the market.
