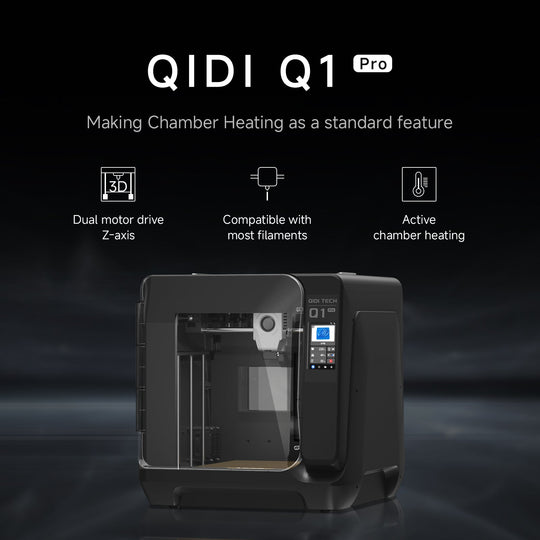

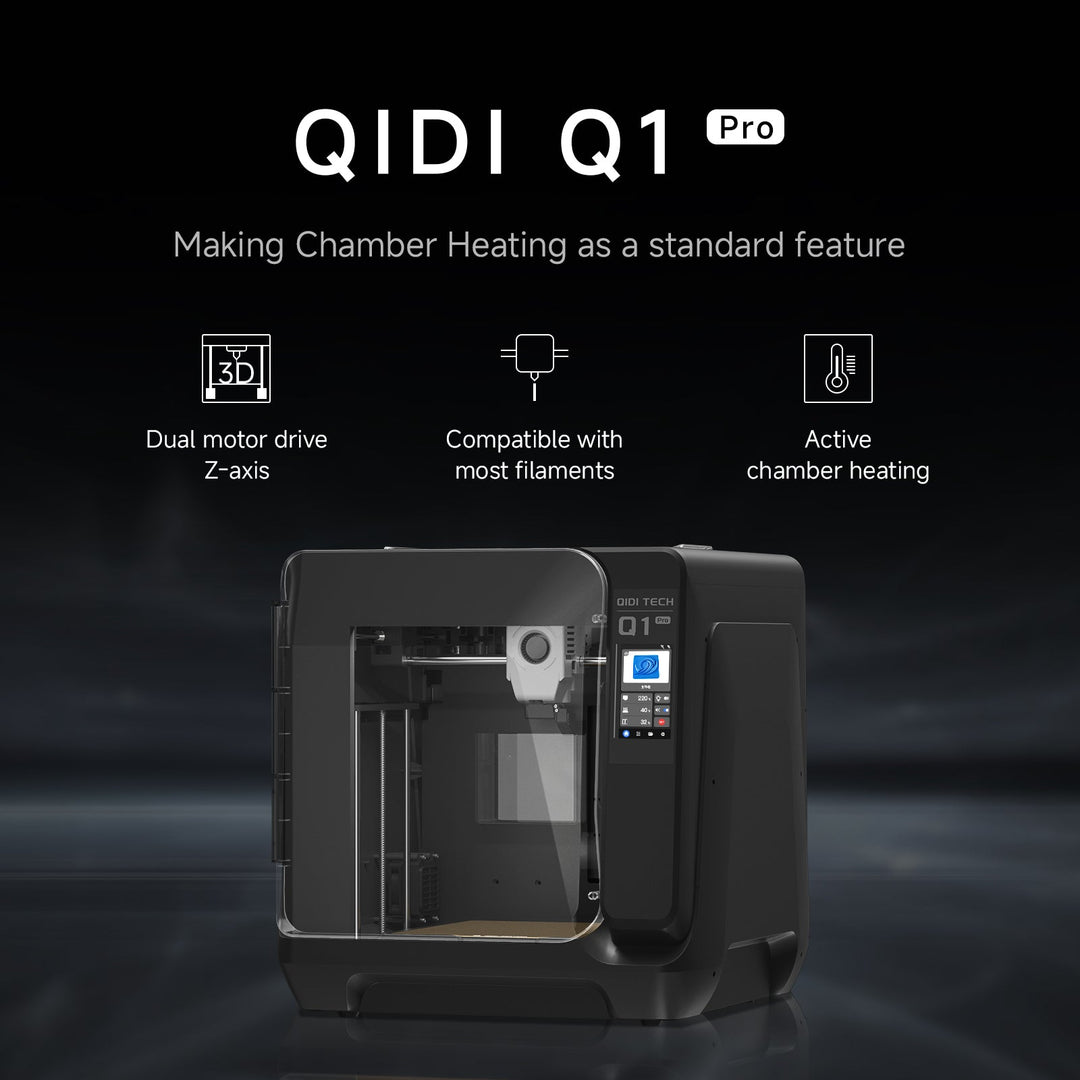

2024 Q1 Three Highlights
Independent dual Z motors
Active chamber heating
New Tri-metal hot end
Know more about
Temperature control

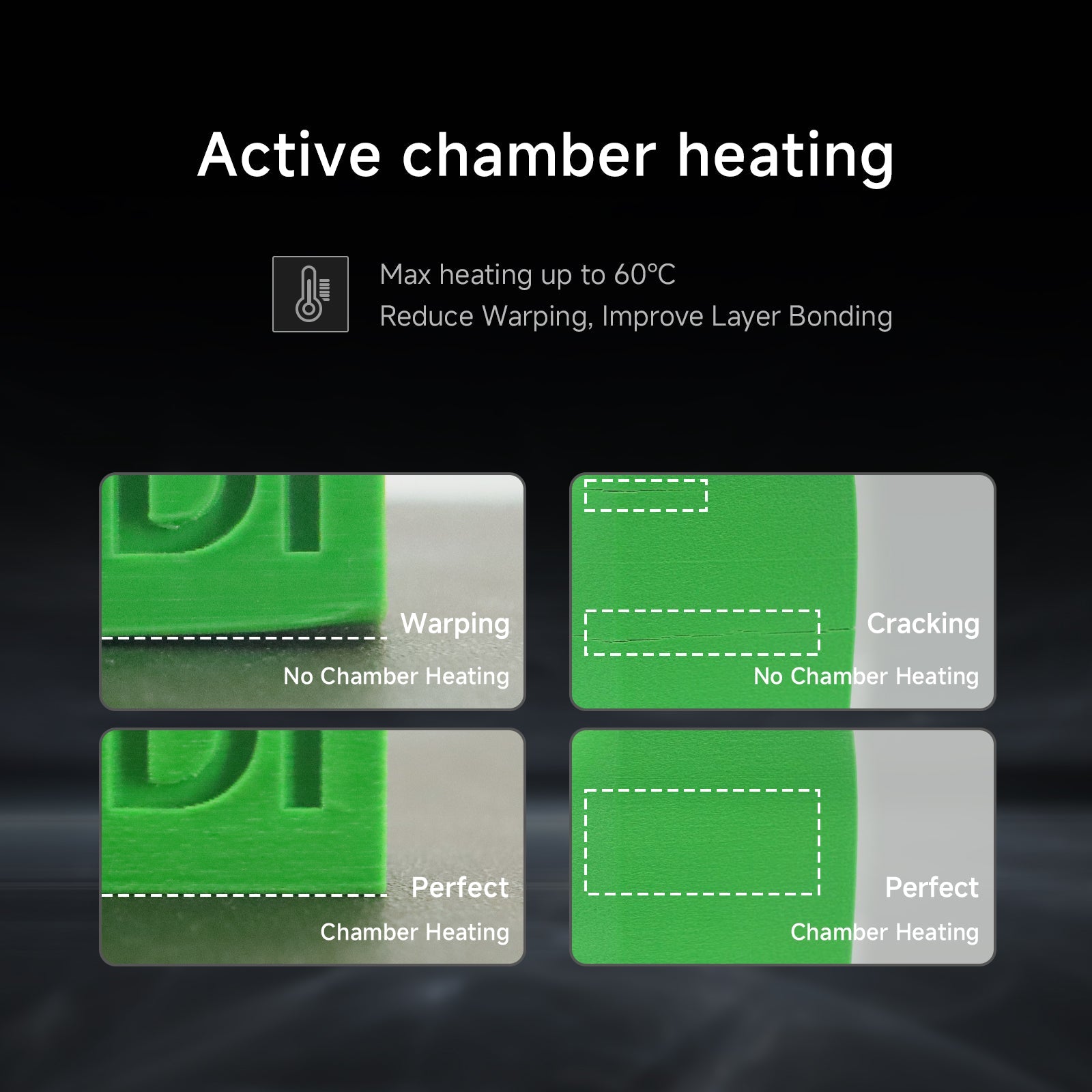

Active chamber heat as standard feature
Reduce warping, lmprove layer bonding, Better print quality
Especially for warp-prone
filaments such as ABS, PA, PC, etc

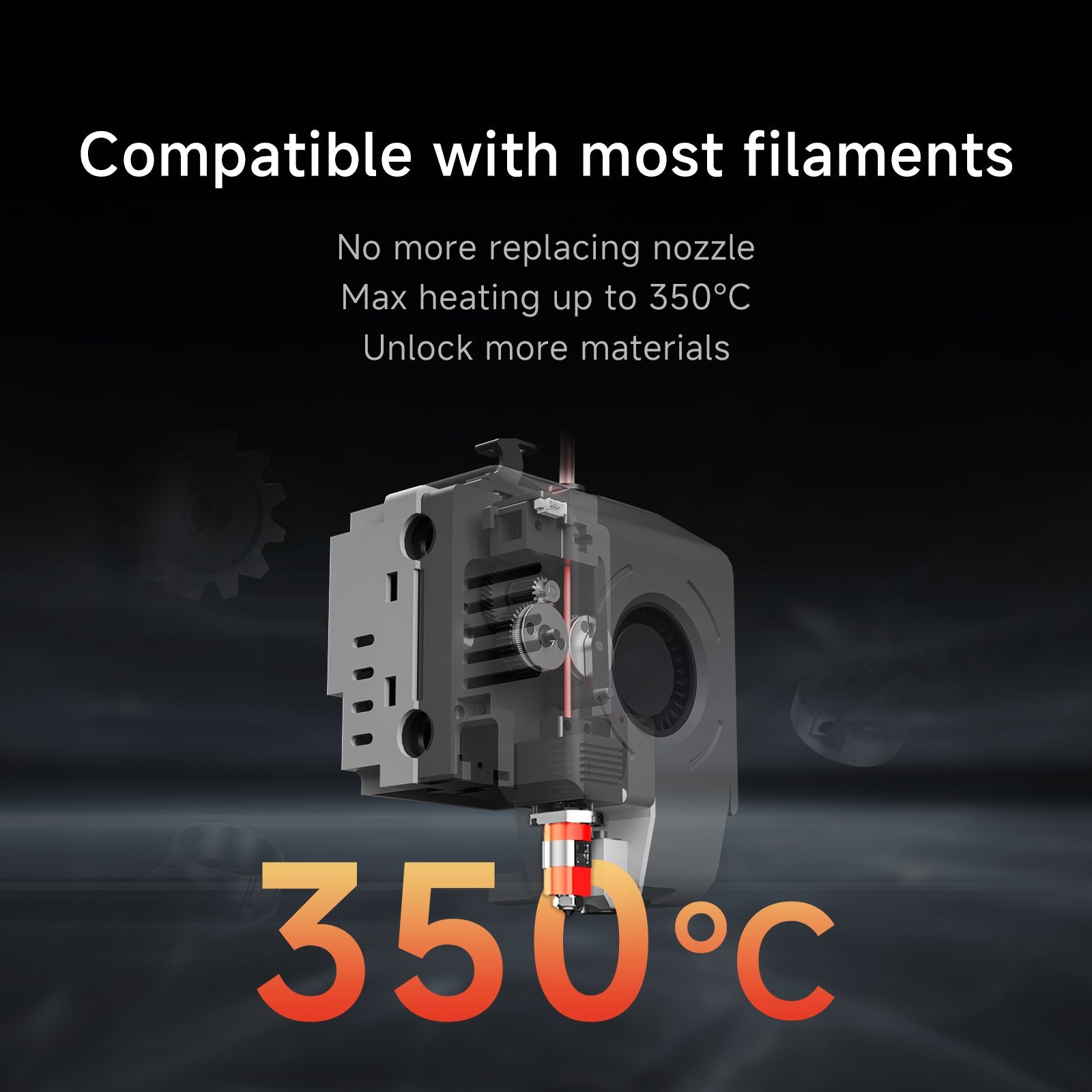

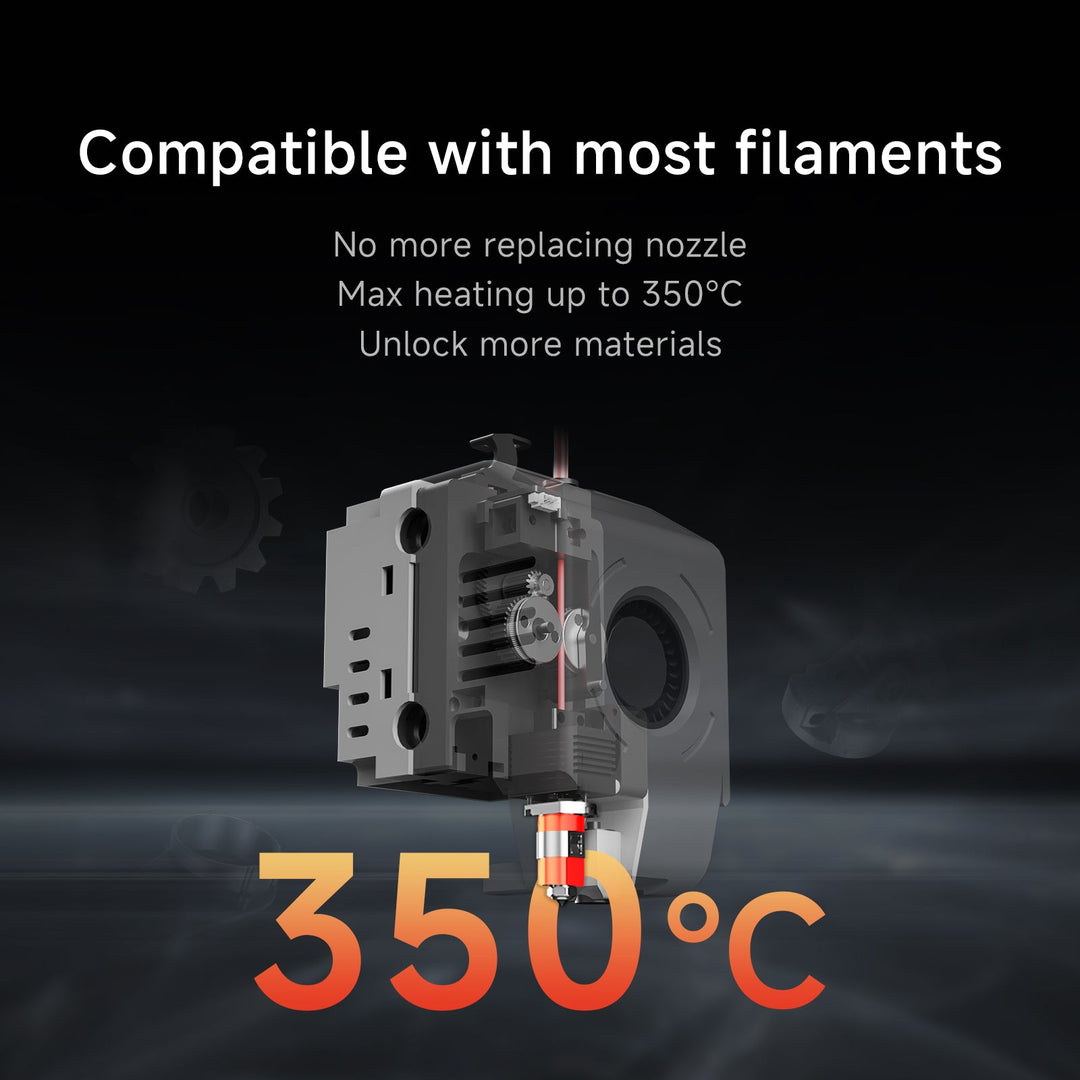

Maximum 350°C nozzle temp
Unlock High-temp filament
PAHT-CF, PET-CF, PA12-CF, ABS-GF25, PC/ABS-FR etc

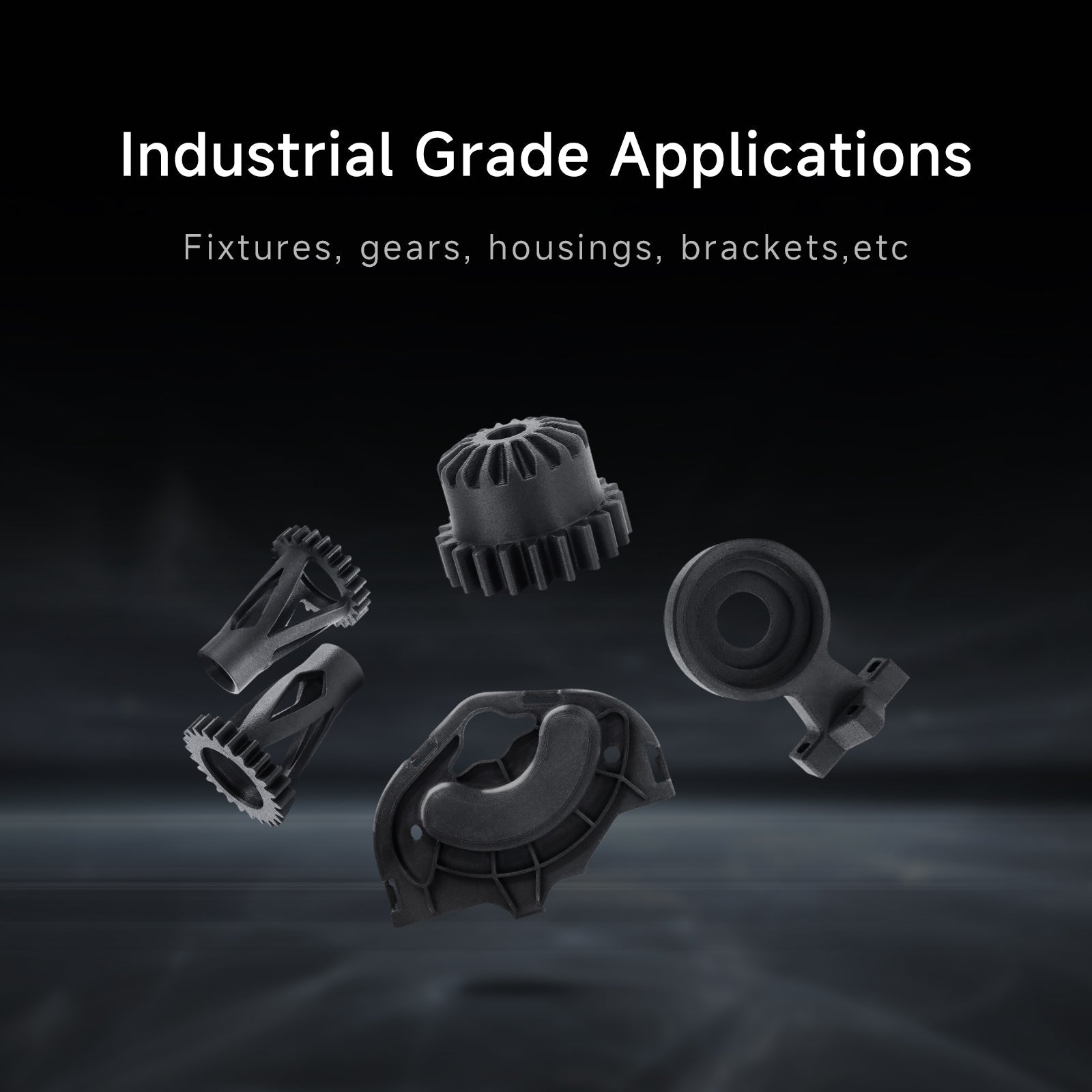

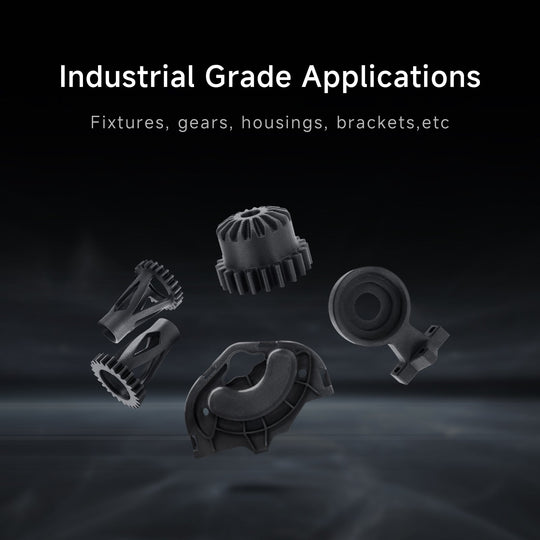

Gives models better mechanical properties
Material：PAHT-CF Temp：320℃ Bed：100℃
Chamber：55℃
Filament:Odorless ABS Time:2h40m @JamesThePrinter
Filament:ABS-GF25 Time:2h15m @TED
Filament:PET-CF Time:1h27m @TED
Filament:Ultra PA Layer Height:0.2mm @Qidi User
Filament:Odorless ABS Time:2h40m @JamesThePrinter
Filament:ABS-GF25 Time:2h15m @TED
ABS-GF25
PET-CF
Ultra PA
Odorless ABS

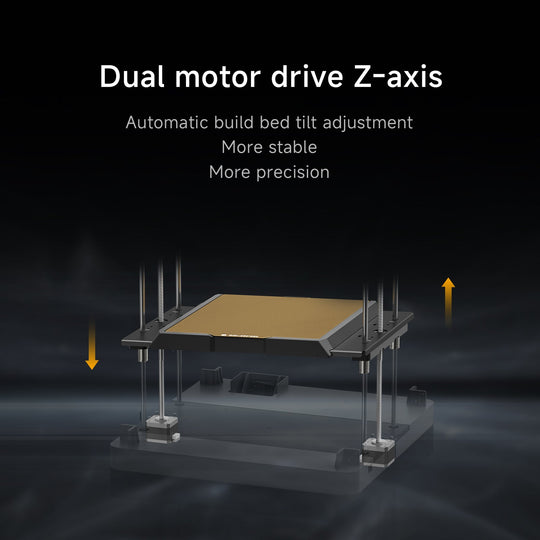

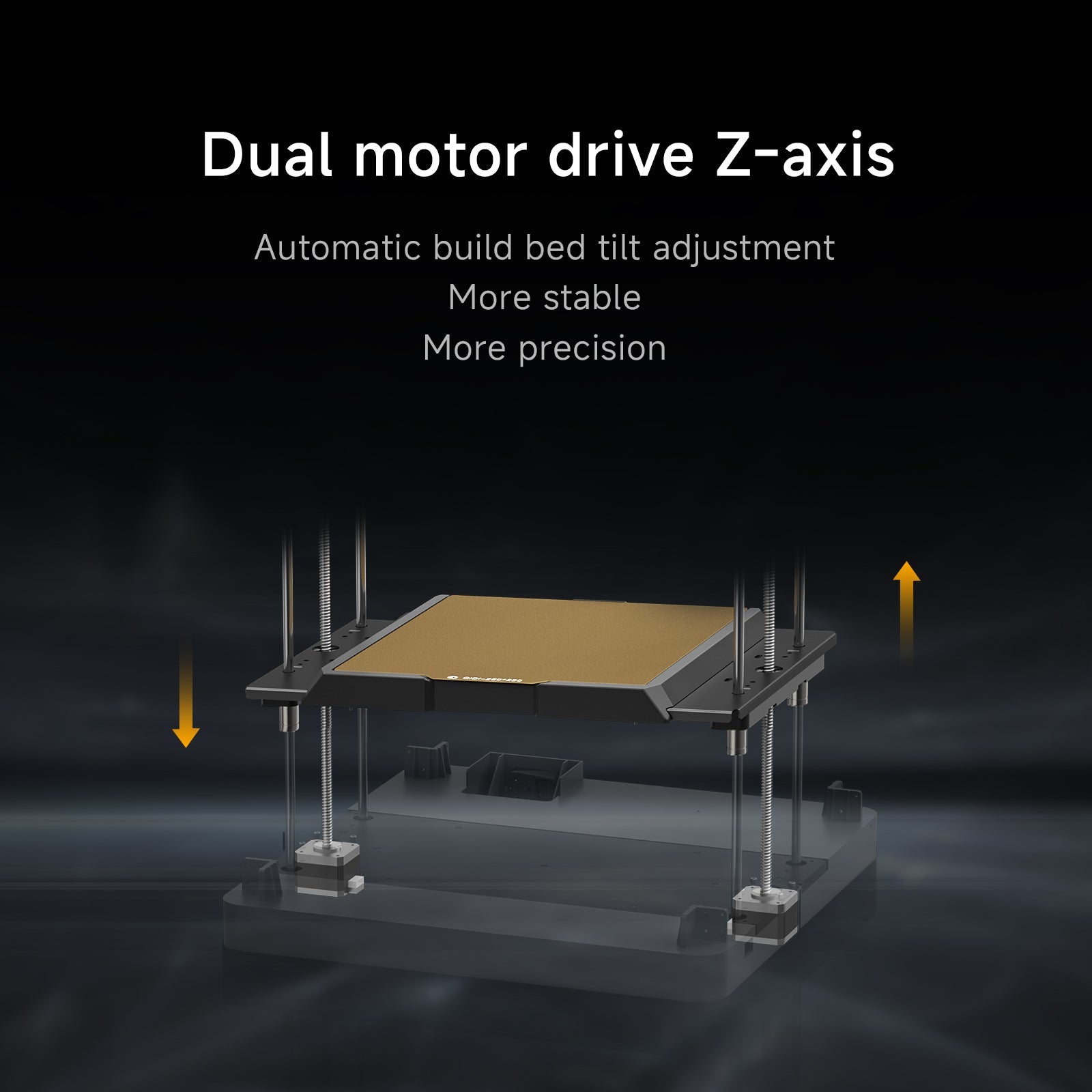

Independent dual Z motors
Without belt
Automatic tilt leveling
Higher precision, more stable

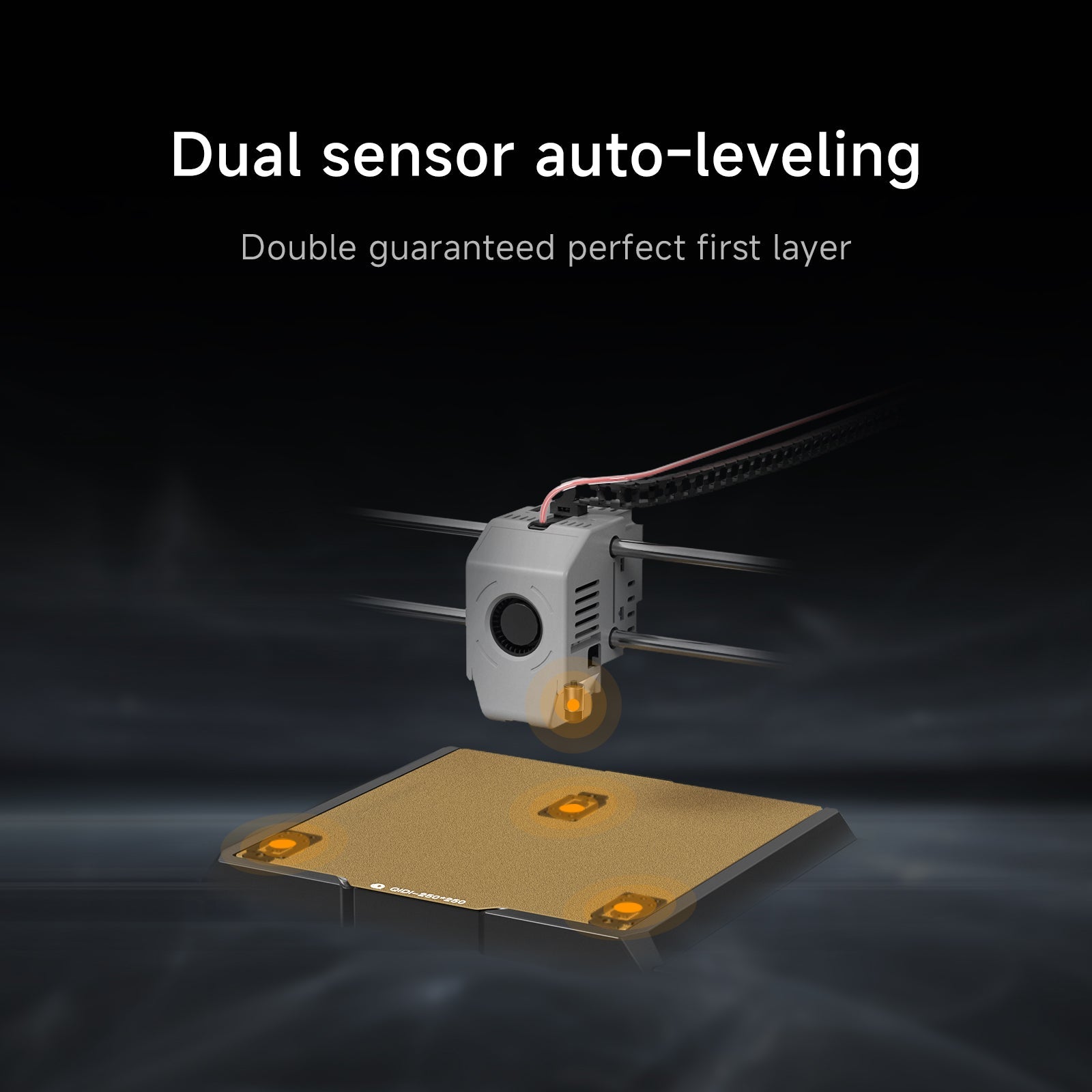

Dual Sensor Auto Bed Leveling
Doubly guaranteed
Perfect first layer for every time
Auto measure Z-offset
Add a nozzle cleaner
No more leveling paper as reference
Comprehensive filament detection system
1. Filament Runout Detection
2. Filament Tangle Detection
High speed, precise and stable
TMC2240
driver
Reducing power consumption and heat generation
Utilizes SpreadCycle technology
for
reduced vibration
Lightweight CoreXY for ultra-fast acceleration
Reliable as always, solid materials
Fully metal frame structure
Metal bottom reinforcement for stability
Klipper 64-bit Processors
32G-EMMC Large
memory
capacity
150M Wi-Fi 6 High-speed transport
Open source and easy to expand
1080P Camera
Timelapse Supported，share your prints
Easy remote monitoring
QIDI Mobile Application
Remote 3D printer at any time
Skip failed 3D printing objects
Reduce filament
waste
10 mins
Right
out of
the box
Precision made easy by auto calibration
Start in one click
QIDI Tech has been manufacturing 3D printing machine since 2014
We are committed to developing a full range of high-quality FDM printers for practical
applications in multiple industries
so that products can create value for customers in 3D
printing.
What's in the box

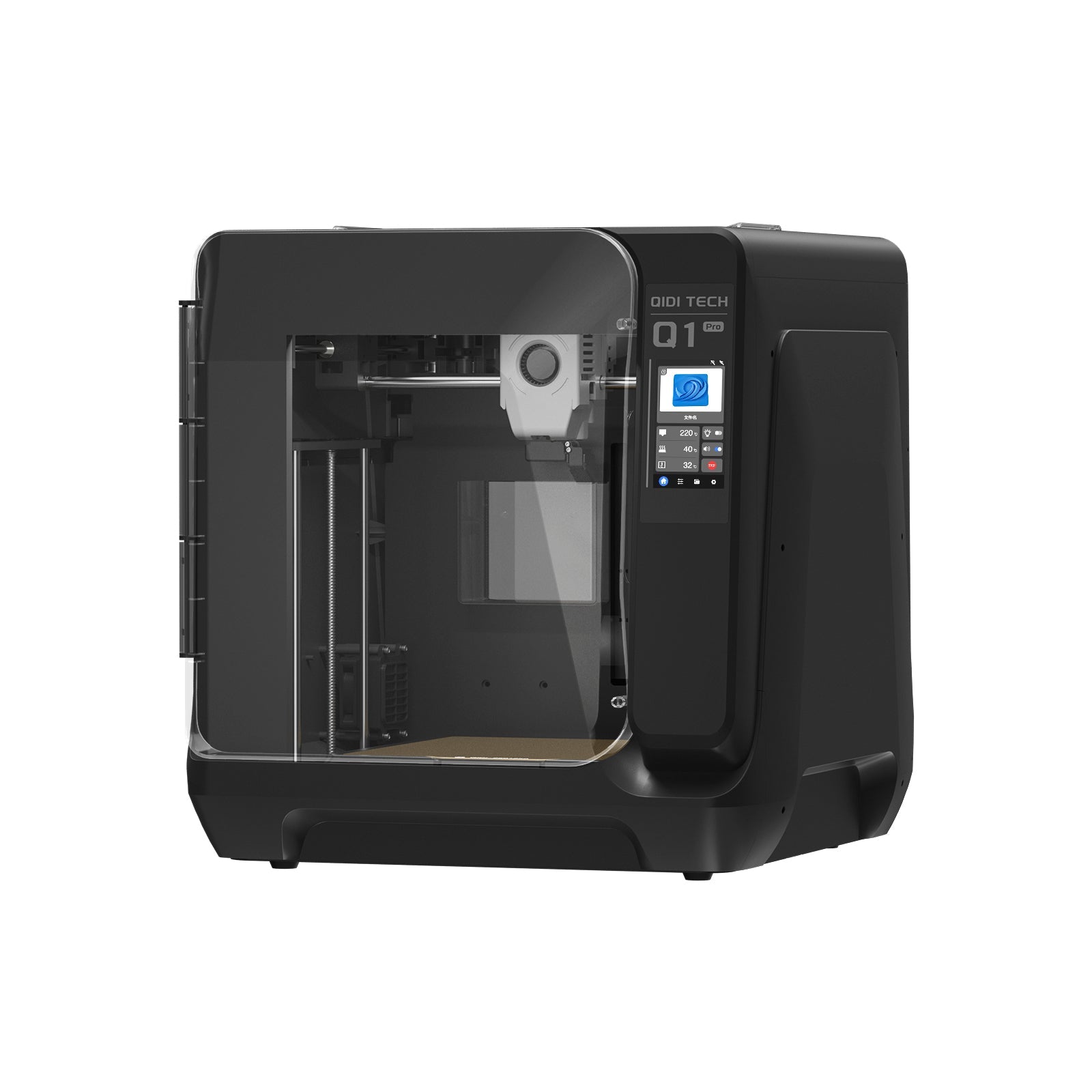

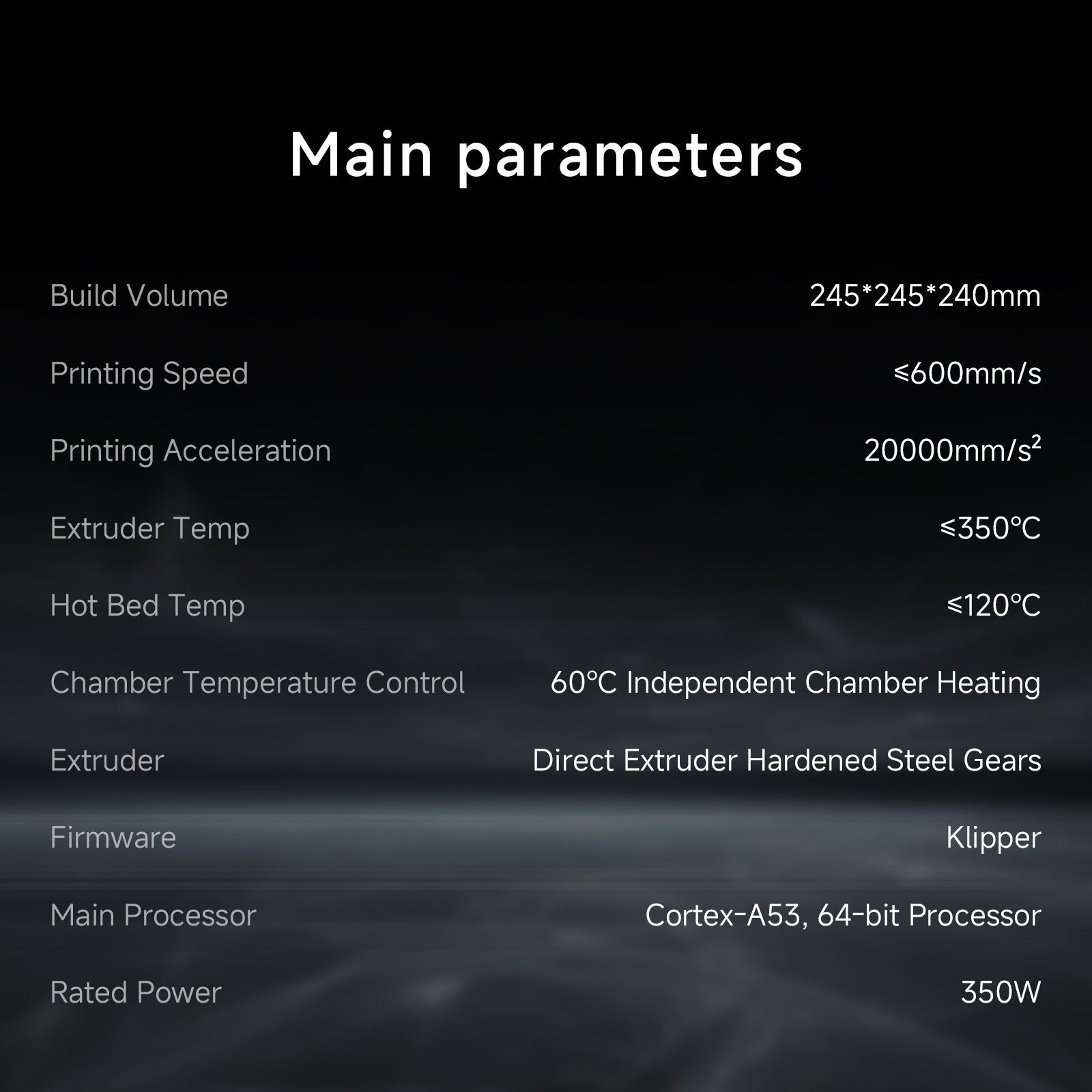

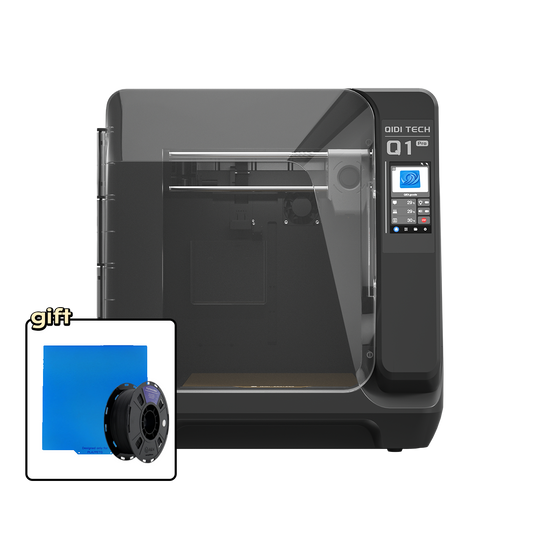

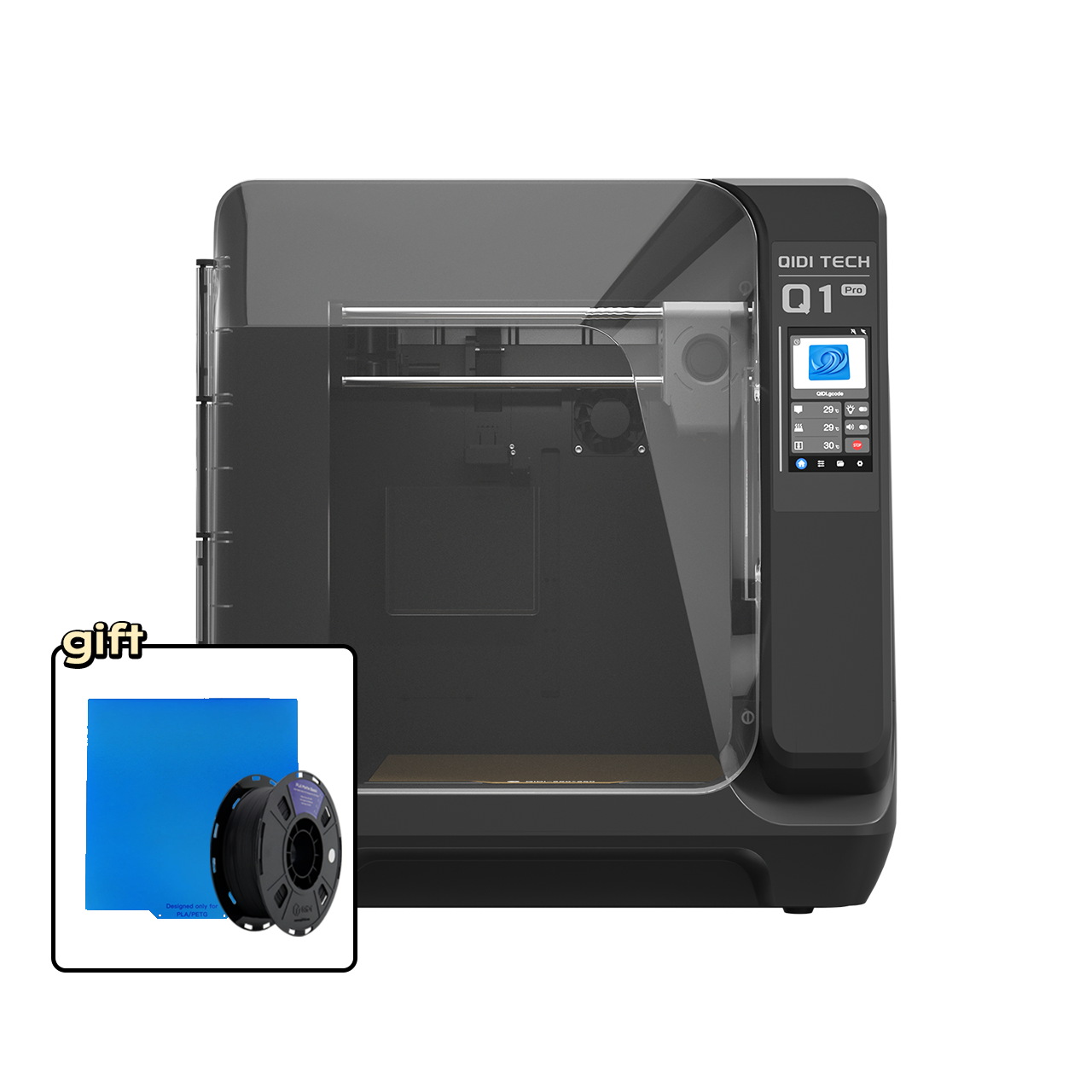

QI Pro Specifications
| Item | Specification | Item | Specification |
| Print Size (W*D*H)： | 245*245*240 mm | Auxiliary Part Cooling Fan： | ✔ |
| Printer Dimensions： | 477*467*489 mm | Chamber Circulation Fan： | ✔ |
| Package Dimensions： | 545*535*595mm | Chamber Temperature： | 60° C Independent Chamber Heating |
| Cross Weight： | 20.3kg | Recommended Filament： | PLA, ABS, ASA, PETG |
| Net Wetiht： | 17kg | Compatible Filament： | TPU,PA, PC, Carbon/ Glass Fiber Reinforced Polymer |
| XY Structure： | CoreXY | Dry box： | Optional |
| X/Y Axis： | 10mm/8mm High hardness linear hollow steel shafts belt tensioned automatically |
Filament Tangle Detection： | ✔ |
| Z Axis： | Dual Independent Lead Screw Motors | Filament Run Out Sensor： | ✔ |
| Print Head Temperature： | ≤ 350℃ | Automatic Leveling： | Hands-free Automatic Leveling |
| Extruder： | Direct Extruder Hardened Steel Gears |
Input Shaping： | ✔ |
| Hot End： | Ceramic Plate Heating Hot End | Power Loss Recovery： | ✔ |
| Nozzle： | Bimetal Nozzle | Voltage： | 100-240 VAC, 50/60Hz |
| Nozzle Diameter： | 0.4mm （0.2/0.6/0.8mm Optional） |
Rated Power： | 350W+300W(Chamber Heater) |
| Filament Diameter： | 1.75mm | Display Screen： | 4.3 Inch 272*480 Touch Screen |
| Printing Platform： | Aluminum Substrate Heating Bed | Storage： | 32G EMMC and USB2.0 Flash Drive |
| Printing Plate： | Dual-Sided Textured PEI Plate | Camera： | Low Framerate Camera (Up to 1080P) Timelapse Supported |
| Hot Bed Temperature： | ≤ 120℃ | Wifi Module： | 150M 2.4G |
| Max Speed of Tool Head： | 600mm/s | Slicer： | QIDI Slicer and other third-party software, such as PrusaSlicer, Orca etc. |
| Acceleration： | ≤20000mm/s^2 | File Formats for Slicing： | STL, OBJ, 3MF,STEP,STP |
| Operating System： | Windows、MacOS、Linux | Q1 Pro TDS: Download | |
| Item | Specification |
| Print Size (W*D*H)： | 245*245*240 mm |
| Auxiliary Part Cooling Fan： | ✔ |
| Printer Dimensions： | 477*467*489 mm |
| Chamber Circulation Fan： | ✔ |
| Package Dimensions： | 545*535*595mm |
| Chamber Temperature： | 60° C Independent Chamber Heating |
| Cross Weight： | 20.3kg |
| Recommended Filament： | PLA, ABS, ASA, PETG |
| Compatible Filament： | TPU,PA, PC, Carbon/ Glass Fiber Reinforced Polymer |
| XY Structure： | CoreXY |
| Dry box： | Optional |
| X/Y Axis： | 10mm/8mm High hardness linear hollow steel shafts belt tensioned automatically |
| Filament Tangle Detection： | ✔ |
| Z Axis： | Dual Independent Lead Screw Motors |
| Filament Run Out Sensor： | ✔ |
| Print Head Temperature： | ≤ 350℃ |
| Automatic Leveling： | Hands-free Automatic Leveling |
| Extruder： | Direct Extruder Hardened Steel Gears |
| Input Shaping： | ✔ |
| Hot End： | Ceramic Plate Heating Hot End |
| Power Loss Recovery： | ✔ |
| Nozzle： | Bimetal Nozzle |
| Voltage： | 100-240 VAC, 50/60Hz |
| Nozzle Diameter： | 0.4mm （0.2/0.6/0.8mm Optional） |
| Rated Power： | 350W+300W(Chamber Heater) |
| Filament Diameter： | 1.75mm |
| Display Screen： | 4.3 Inch 272*480 Touch Screen |
| Printing Platform： | Aluminum Substrate Heating Bed |
| Storage： | 32G EMMC and USB2.0 Flash Drive |
| Printing Plate： | Dual-Sided Textured PEI Plate |
| Camera： | Low Framerate Camera (Up to 1080P) Timelapse Supported |
| Hot Bed Temperature： | ≤ 120℃ |
| Wifi Module： | 150M 2.4G |
| Max Speed of Tool Head： | 600mm/s |
| Slicer： | QIDI Slicer and other third-party software, such as PrusaSlicer, Orca etc. |
| Acceleration： | ≤20000mm/s^2 |
| File Formats for Slicing： | STL, OBJ, 3MF,STEP,STP |
| Operating System： | Windows、MacOS、Linux |
| Q1 Pro TDS: Download | |
